Dual-purpose for moving goods and weighing
High-quality robotic welding ensures structural stability of hand pallet trucks.
Robotic welding of the machine body, the welding points are uniform, smooth and strong.

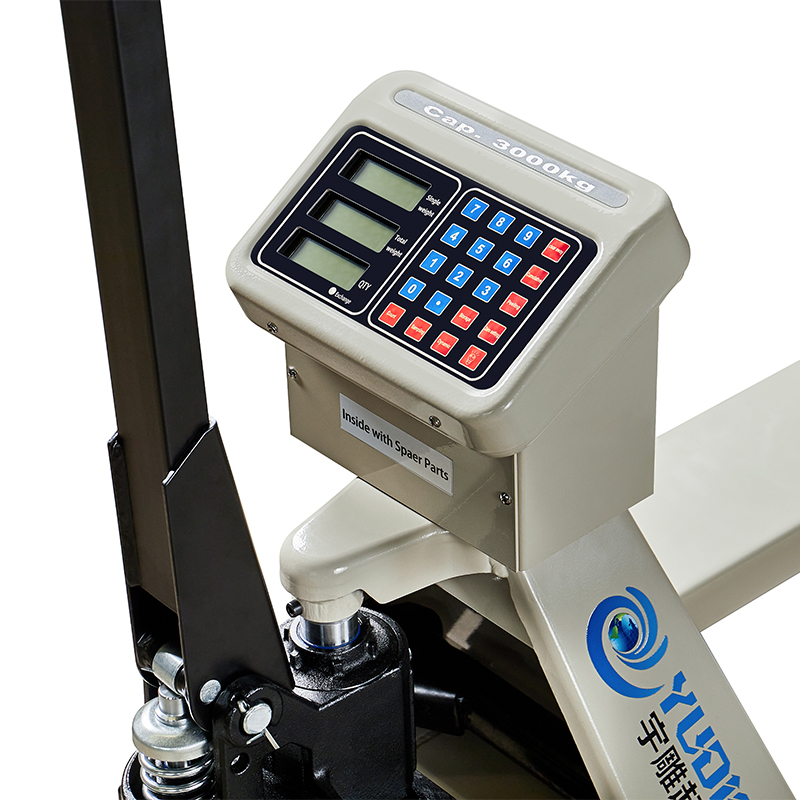

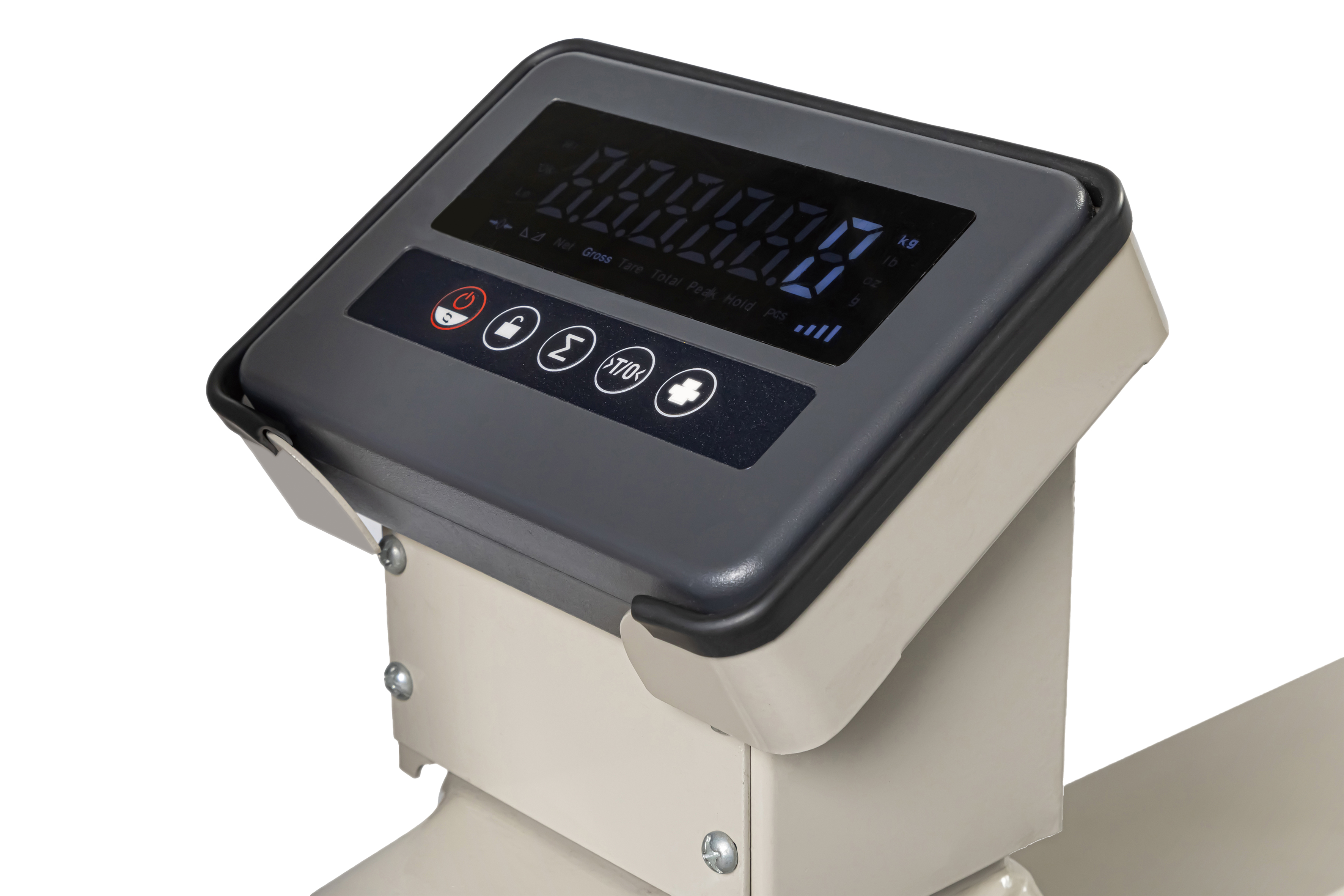

Display has backlight and super-large LCD display, word height 30mm.
Weight accumulation:Each batch of products can be weighed in multiple times and the final cumulative calculation is performed to avoid overloading.
Available in LB or Kilograms.
Multiple function keys (including tare weight, gross weight) to meet various weighing needs.
Built-in 4000mAH rechargeable battery,easy to change, durable and long lasting,Battery life 600 hours in Standby mode.

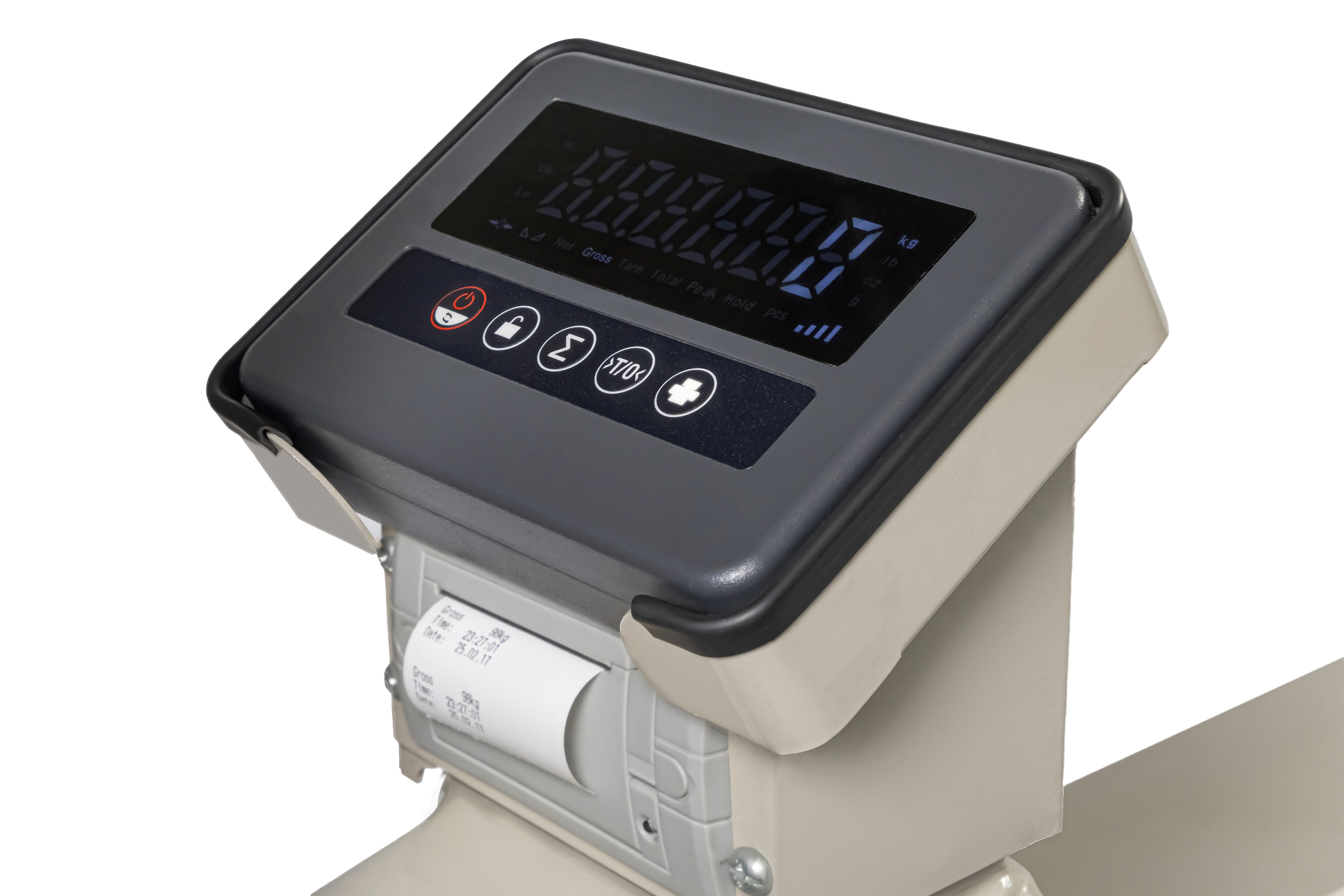

External optional printer available.
0.05% scale accuracy with high consistency.
| Model | BF-ES-I | |||
|---|---|---|---|---|
| Load Capacity (Q) | kg | 2000 | ||
| Width Overall Forks(K) | mm | 557 | 692 | |
| Fork Length (l) | mm | 1150 | 1220 | |
| Overall Length(l1) | mm | 1569 | 1693 | |
| Handle Height (h2) | mm | 1207 | 1207 | |
| Lower Fork Height (h) | mm | 85 | 85 | |
| Overall Lifting Height (h1) | mm | 110 | 110 | |
| Ground Clearance(m) | mm | 26 | 26 | |
| Fork Width (e) | mm | 182 | 182 | |
| Fork Thickness (s) | mm | 50 | 50 | |
| Fork wheel | mm | 74*70/ 74*93 | 74*70/ 74*93 | |
| Steering Wheel | mm | 180*50 | 180*50 | |
| Service Weight | Kg | 94 | 97 | |
| Turning Radius (WQ) | mm | 1346 | 1416 | |
