High reliability and long service life of 5 years.

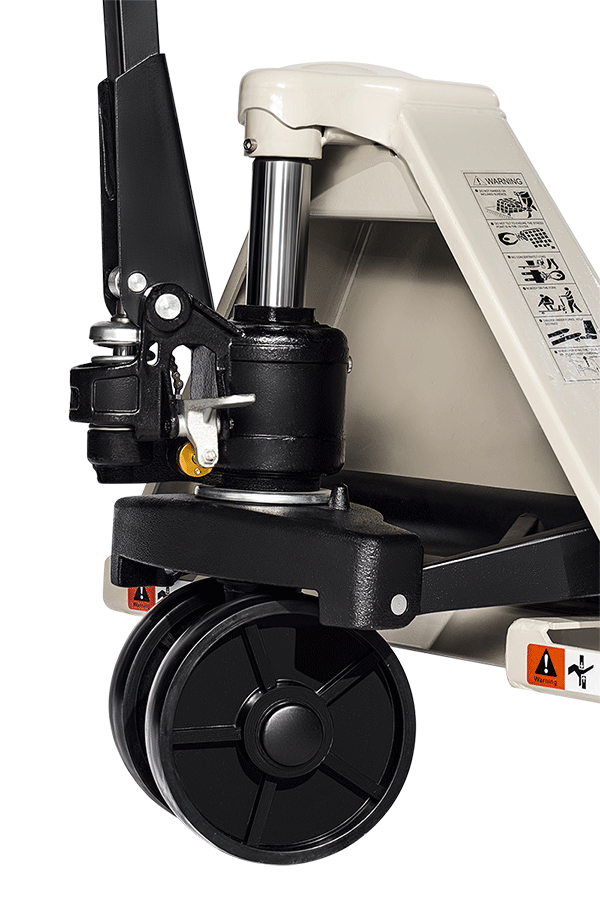

40mm integrated hydraulic unit and 6mm steel plate thickness
The lifting system equipped with overloading protection valve to ensure safe operation.
The structural design guarantees the convenience of assembling and disassembling.
Light-weight fork frame, made from high rigidity steel plate.
| Model | BF-S-HD5 | |||
|---|---|---|---|---|
| Load Capacity (Q) | kg | 5000 | ||
| Width Overall Forks(K) | mm | 550/685 | ||
| Fork Length (l) | mm | 1150/1220/1500/1800/2000 | ||
| Overall Length(l1) | mm | 1600/1670/1950/2250/2450 | ||
| Handle Height (h2) | mm | 1250 | ||
| Lower Fork Height (h) | mm | 85 | ||
| Overall Lifting Height (h1) | mm | 115 | ||
| Min.Ground Clearance(m) | mm | 30 | ||
| Fork Width (e) | mm | 176 | ||
| Fork Thickness (s) | mm | 60 | ||
| Fork wheel | mm | 85*80 | ||
| Steering Wheel | mm | 200*50 | ||
| Service Weight | Kg | 101-110 | ||
