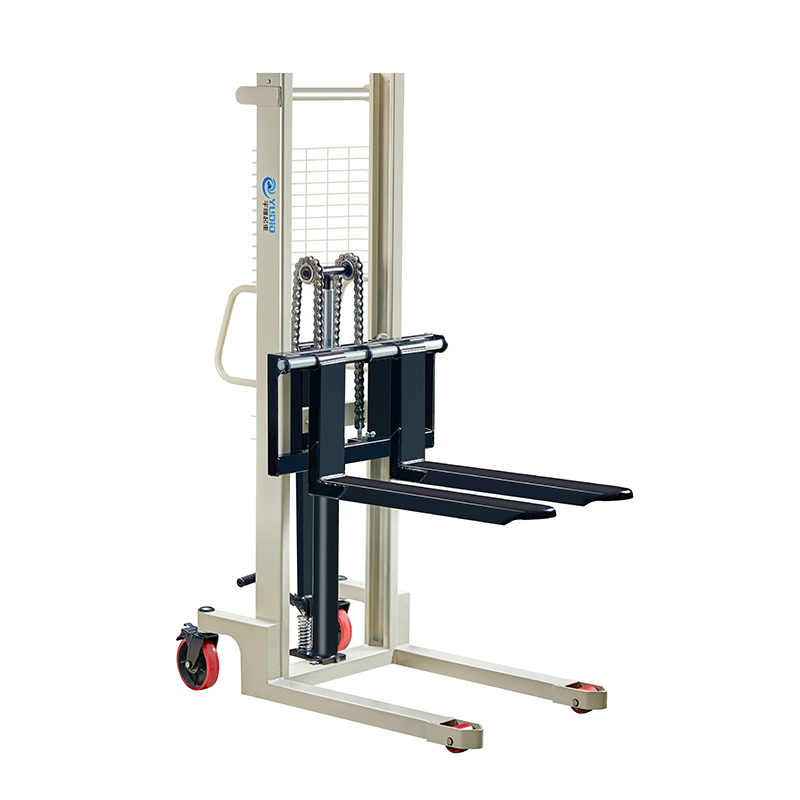

With adjustable forks between 220 mm to 760mm.
Shaft type forks help to control adjustment better.
High quality steel mast and strong steel structure ensure rigidity and durability.
Welded forks deliver low-cost solution.
Highly efficient pump makes the control easier to operate.
Foot and hand controlled lifting function allows the operator to work without having to perform extreme body movements.
Metal grid protects operators from lift chains.
With safety wheel guard and brake system to ensure safety during operation.
| Model | BF-MS | |||
|---|---|---|---|---|
| Capacity(Q) | kg | 1000 | 2000 | 3000 |
| Min. Lifting Height(h) | mm | 1600 | 1600 | 1600 |
| Overall Width (b1) | mm | 780 | 780 | 780 |
| Overall Height (h1) | mm | 2050 | 2050 | 2050 |
| Overall Length(l1) | mm | 1380 | 1380 | 1430 |
| Min.lifting Height | mm | 95 | 95 | 95 |
| Fork Length(l) | mm | 900 | 900 | 950 |
| Single Fork Width(e) | mm | 100 | 120 | 140 |
| Adjustable Fork Width(b) | mm | 220-730 | 260-730 | 300-760 |
| Loading wheel | mm | 90*50 | 80*70 | 80*70 |
| Steering Wheel | mm | 180*50 | 180*50 | 180*50 |
| Handle Height(h2) | mm | 1155 | 1155 | 1155 |
| Turning Radius (WQ) | mm | 1000 | 1000 | 1000 |
| Service Weight | kg | 148 | 180 | 255 |
