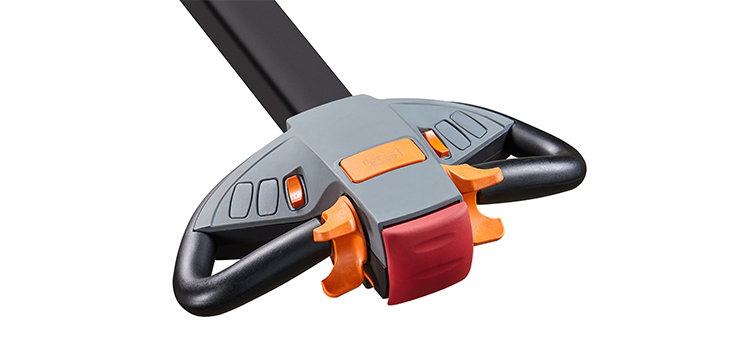

Off-set, ergonomic tiller head ensures safety and visibility.Long tiller with low mounting point provides safety clearance between operator and chassis.The operator can choose an suitable operating height according to his operating habits.Safe distance and good working vision can make stacking operations more efficient and faster.

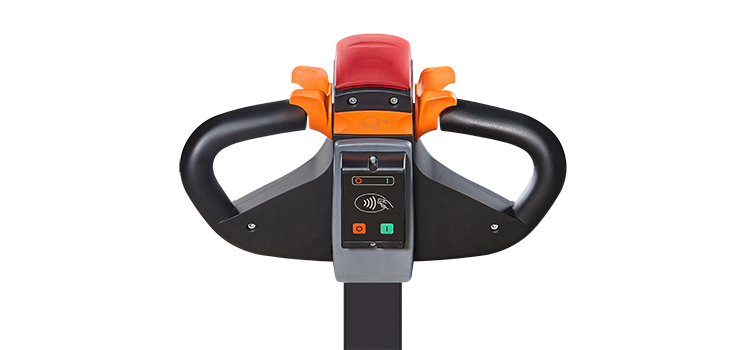

Dual-speed mode: the speed of this electric stacker can be switched between normal speed and creep speed freely. It automatically switches to creep speed with the tiller in the upright position. The multifunctional tiller head together with the slow travel button enables safe, slower movement with the raised tiller, increasing maneuverability in confine areas

Adjustable balance wheel improves stability and maneuverability, suitable for different working conditions.

The strong channel steel gives the vehicle better stability and longer life:

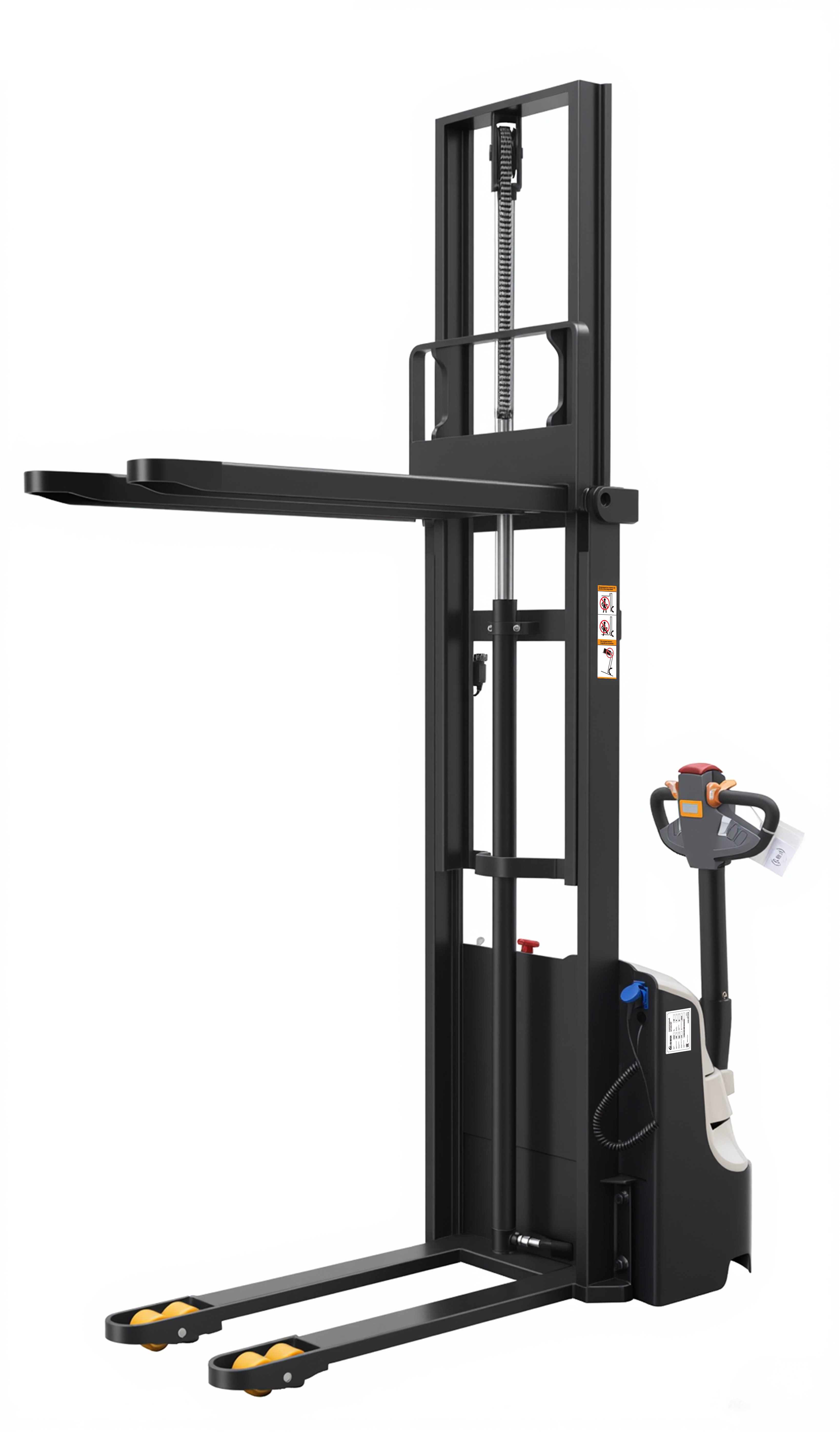

Split mast: The assembled connection of the mast and the stacker frame allows easy installation and replacement of the mast as needed.

The battery has overload protection to avoid over-discharge and extend the battery life.The full load walking time is 4-5 hours, and the charging time is 10-12 hours.

Multi-function display with BDI and hour meter.

With lifting limit switch to shut off pump motor at the max. Lifting height.

Curtis controller can achieve excellent speed and steering control effects, accurately control the driving state of electric vehicles, and improve driving stability and safety.

Thickness of fork leg:6mm+16mm.

Built-in pressure relief valve protects the trucks from overload.

Stepless speed control.

Vertical drive motor has a small turning radius, the motor structure is water-proof and dust-proof.
