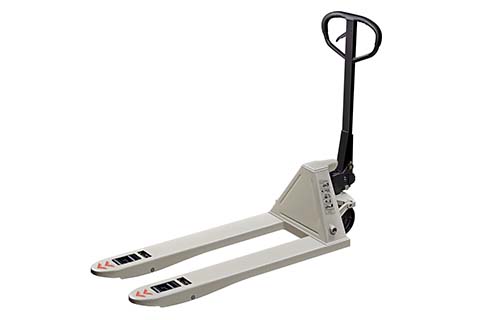

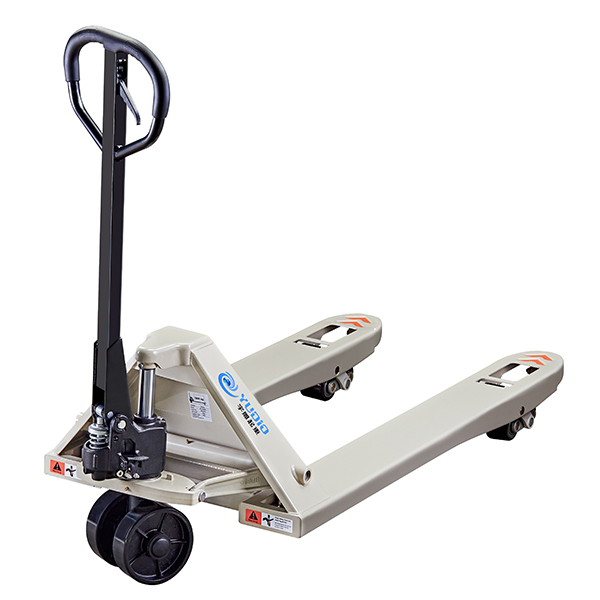

Top Premium Quality

ModelBF-S

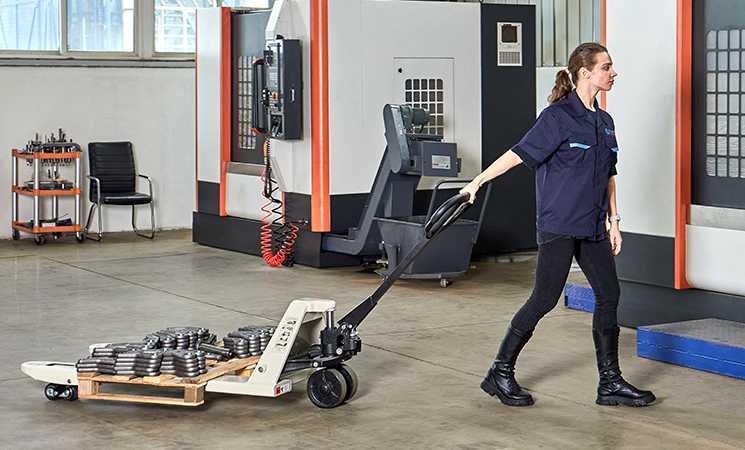

The "BF-S”series hand pallet truck of Yudiao Group has been engineered to provide long-lasting durability and application versatility. With durable construction and high-quality hardened steel, it is the ideal warehouse assistant for all manual transporting over short distances.

Online Consultation

Instant Inquiry

Features

Ergonomic handle with fully rubber wrapped and a three-control lever.
3-position in hand control: Lower, Neutral and Raise.
Fork lowering speed is controllable, operated by hand control and foot pedal.
Regular standard and popular model with capacity 2T,2.5T,3T and 5T
Integrated casting pump design with reliable leak-proof pump requiring less maintenance and extending the service time.Adjustable pump cap ensures a long service life.
Equipped with over-load valve for long service time.
8 grease fittings available for daily maintenance.
210 steering arc, and small turning radius.
Entry / exit roller available for more freely travel.
Conform to EN ISO3691-5;Based on Directive 2006/42/EC
Option: 1) Nylon wheel, Rubber wheel, or polyurethane wheel;
2) Black painting pump or silver painting pump;
3) Fork width, fork length and machine colour can be customized.

Core Electrical Module Design

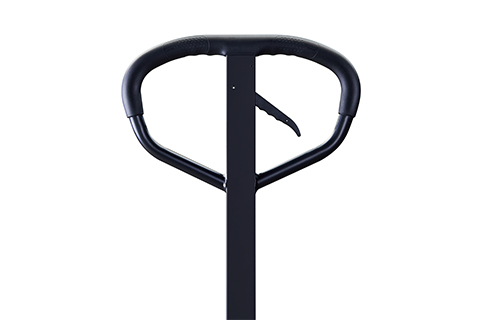

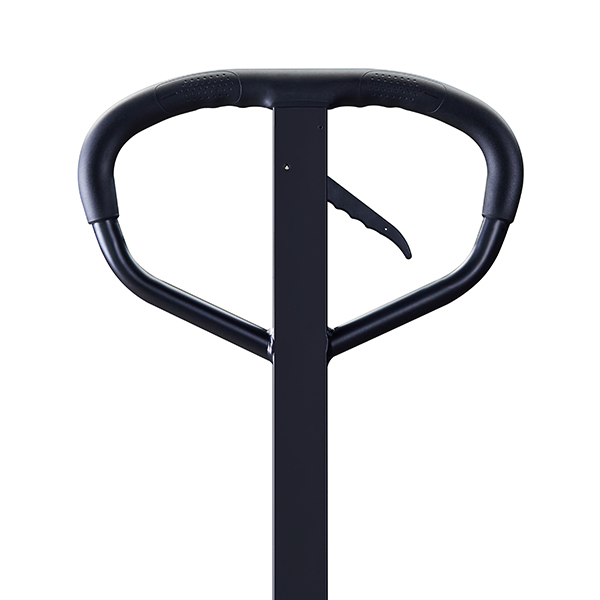

Handle

Handle made of 25mm thickness steel pipe to increase strength.
Handle with rubber wrapped increases service life and the ergonomic design improves work efficiency.

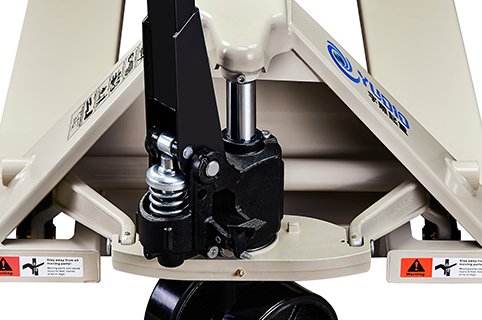

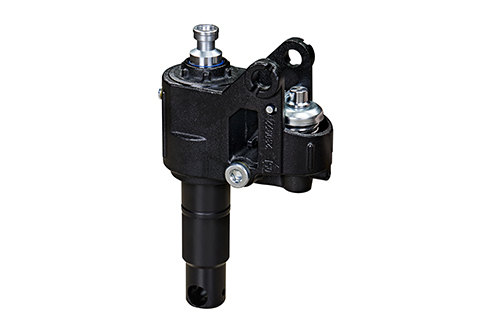

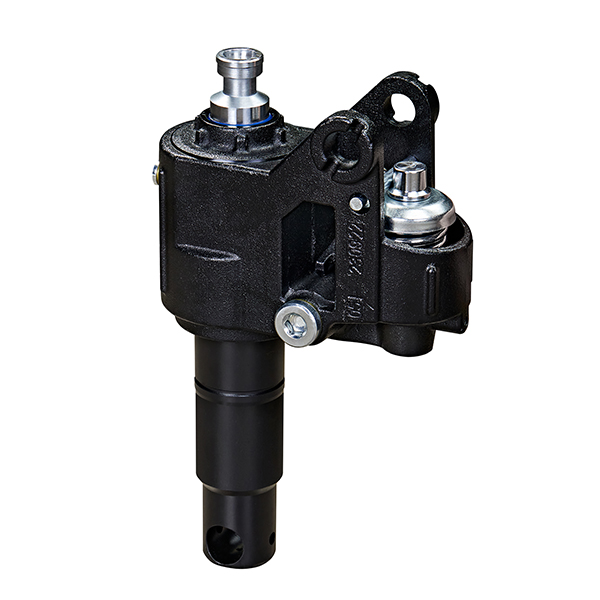

Pump/Hydraulic Unit

AC pump or BF pump, integrated casting design to prevent oil leakage.
36 months quality guarantee period.
Pumps from the same supplier as Niuli Machinery.
Supporting Plate/Traverse

Arched supporting plate with special structure has a load-bearing capacity 1.5 times that of the ordinary support plate.
Supporting plates from the same supplier as Linde.

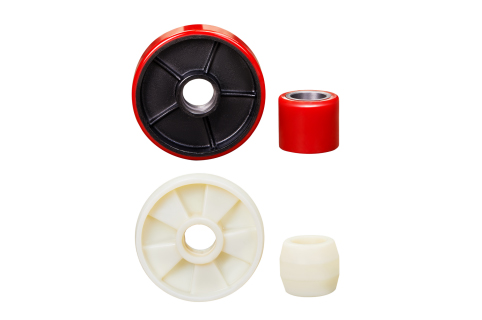

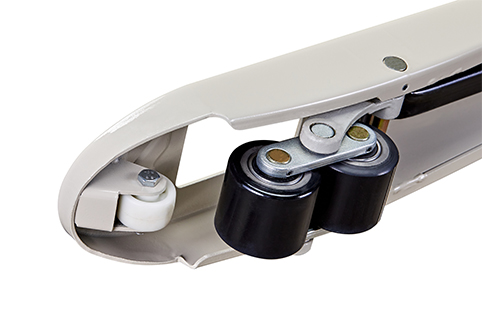

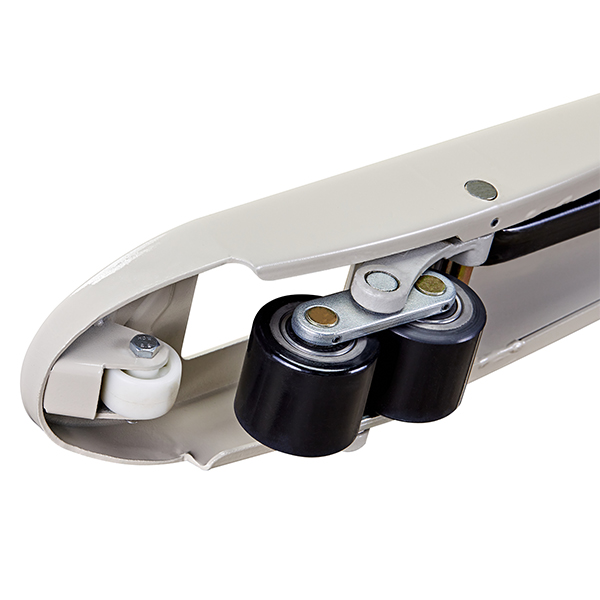

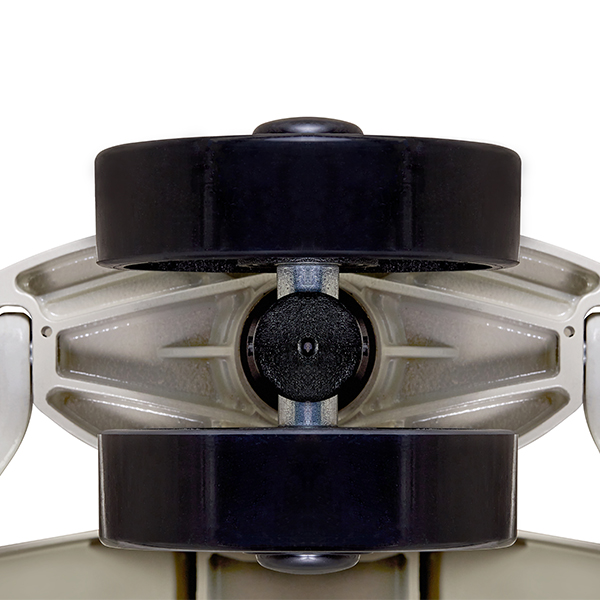

Steering Wheel Loaded Wheel

High-quality Nylon or PU wheels from the same supplier as Nobellift, Xilin, EP, Heli, etc.

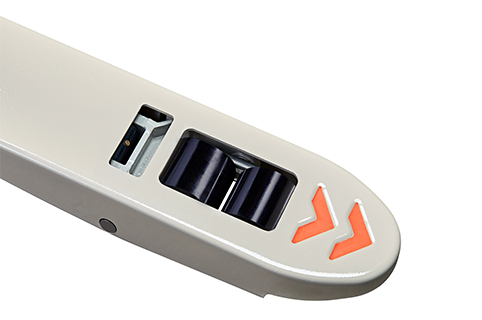

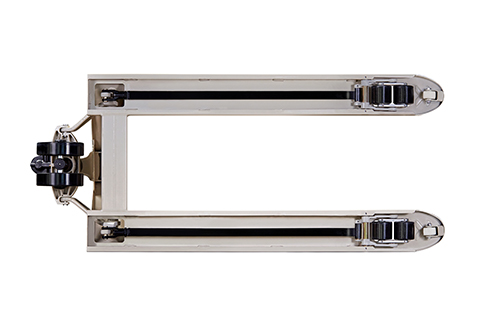

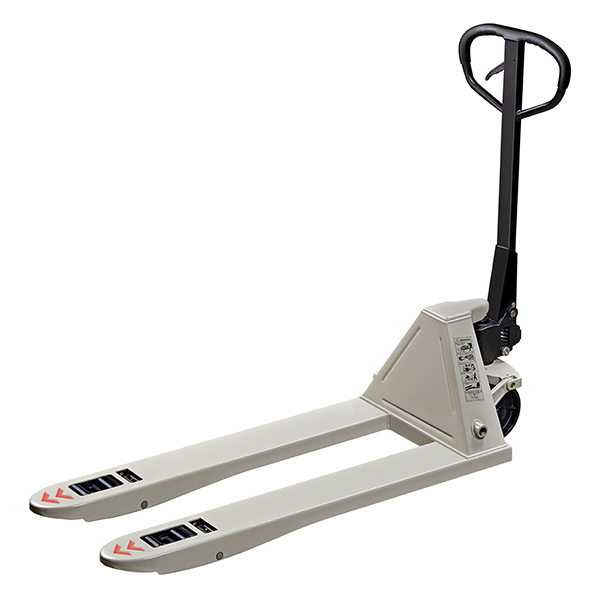

Fork

1.The thickened steel plate is 4mm before painting and 4.25mm after painting to increase the load-bearing capacity.
2.The fork is evenly stressed and not easily deformed.
3.The arrow design has indicative effect.
4.The machine is in beautiful streamlined design. The integrated structure of the fork and the bearing hole of the rear wheel bracket greatly increases the bearing capacity of the rear wheel bracket.
5.The machine with robot automatic welding process has high welding strength and beautiful welds.

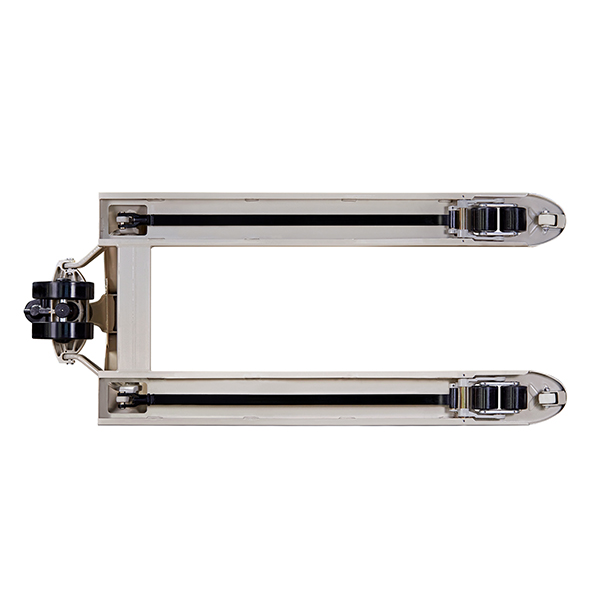

Reinforcement

90cm thickened reinforcement ribs.
The reinforcement ribs fit seamlessly with the forks, and are welded in sections to increase the stability and load-bearing capacity.

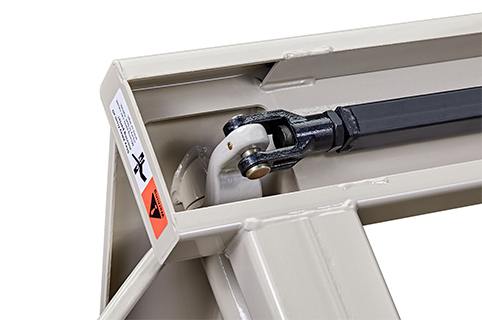

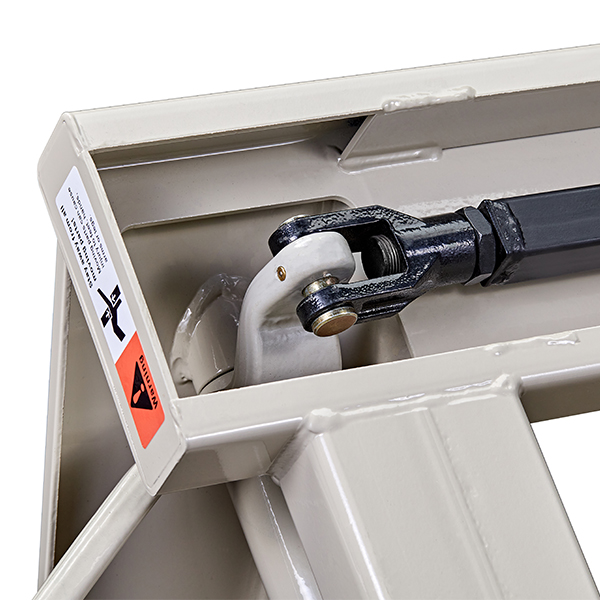

Push Rod

Ajustable push rod with cast steel joint, the easy wear parts are equipped with 1.5mm thickness tin bronze sleeve with wear-resistant coating,which will reduce wearing and increase the service life.

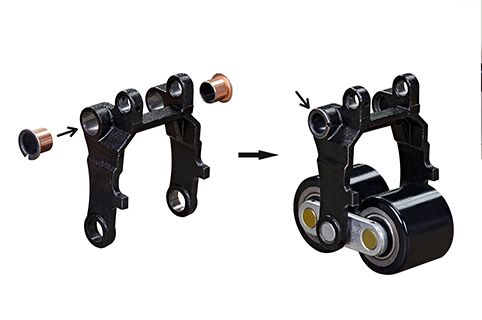

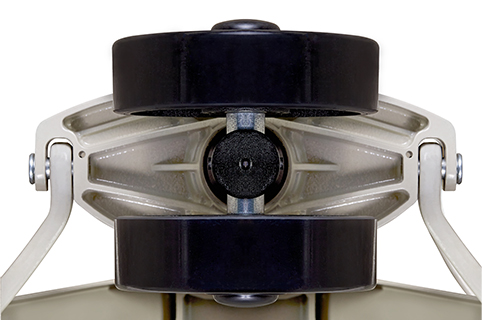

Wheel Bracket

High-strength cast-steel wheel bracket from the same supplier with Linde.
Forged steel double chain plate.
The easy-wear parts are equipped with brass sleeve with wear-resistant coating,which will reduce wearing and increase the service life.

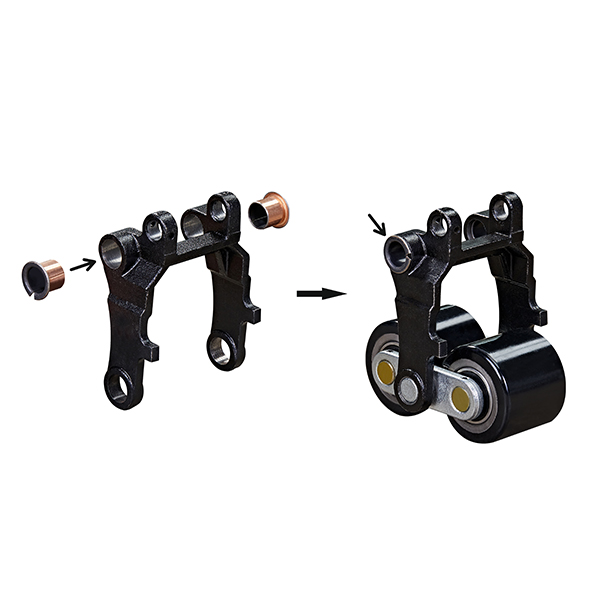

Bronze Sleeves

Twelve 1.5mm thickness tin bronze sleeves with wear-resistant coating are installed to reduce wear and extend service life;
4 bronze sleeves on the push rod connection hole;
8 bronze sleeves on the connection hole between the load-bearing wheel bracket and the wheel set, and fork load-bearing connection hole to reduce wear and extend service life.

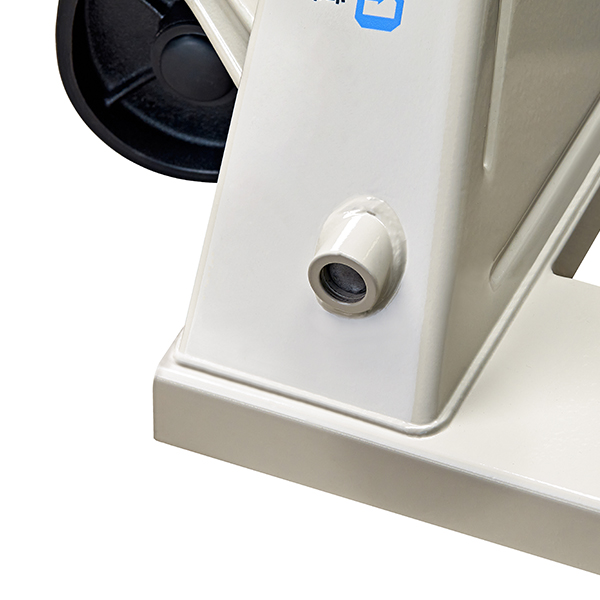

Grease Fittings

8 grease fittings are installed in important connection parts to facilitate mechanical lubrication and daily maintence, which will increase the service life.
Gaps

The gaps between the connection parts of the hand pallet truck are set reasonably to ensure that the machine will not shake due to excessive gaps during use.Relying on excellent stability, it is easier for users to operate smoothly and improve work efficiency.

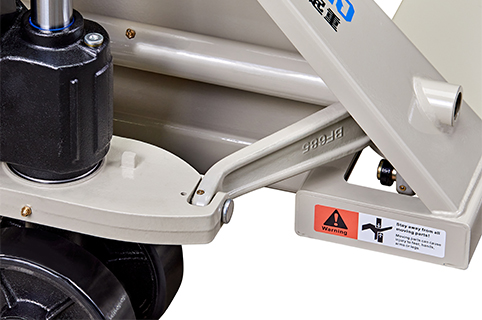

Lifting link

High-strength forged lifting link to prevent overload deformation.

Technical Parameter

Model			AC/BF-S SERIES
Capacity		Q(kg)	2000		2500		3000
Width overall forks		b(mm)	550	685	550	685	550	685
Fork Length		l(mm)	1150	1220	1150	1220	1150	1220
Overall Length		l1(mm)	1550	1620	1550	1620	1550	1620
Steering wheel		mm	Φ180*50
Fork wheel tandem		mm	Φ80x70
Lowered fork height		h(mm)	85
Lifting height		h1(mm)	110
Max. lift height		mm	195
Total height		h2(mm)	1215
Single Fork Width		e(mm)	160
Fork Thickness		s(mm)	51
Ground clearance, centre of wheelbase		m(mm)	30
Turning radius		Wa(mm)	1380	1450	1380	1450	1380	1450
Service weight	PU Wheel	kg	77	80	77.5	80.5	80	83
Service weight	Nylon Wheel	kg	72	75	72.5	75.5	75	78

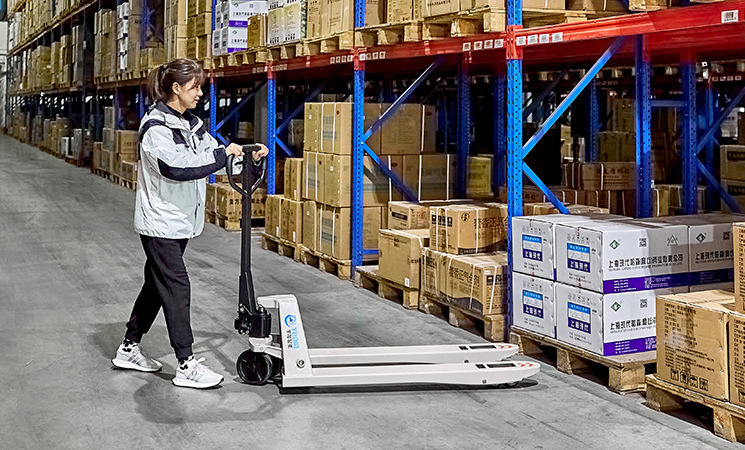

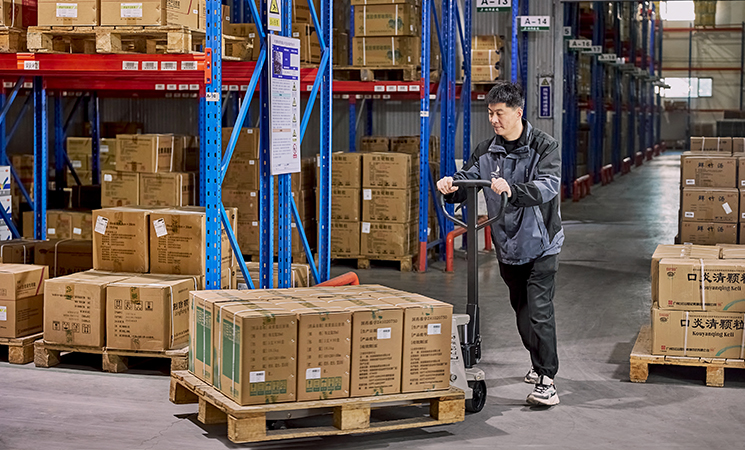

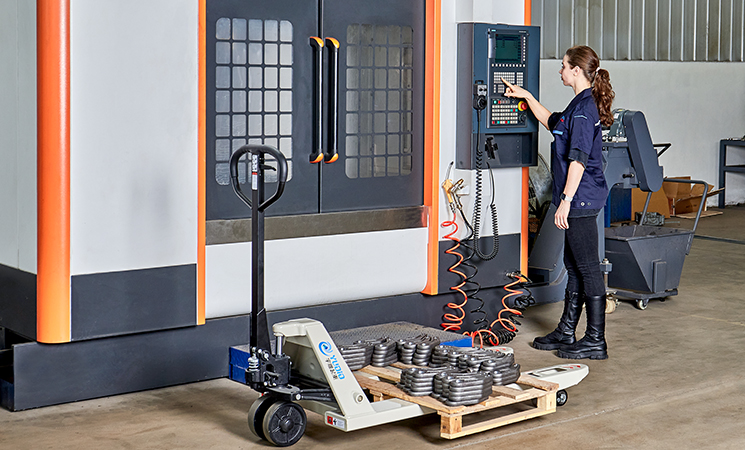

Application Scenarios
