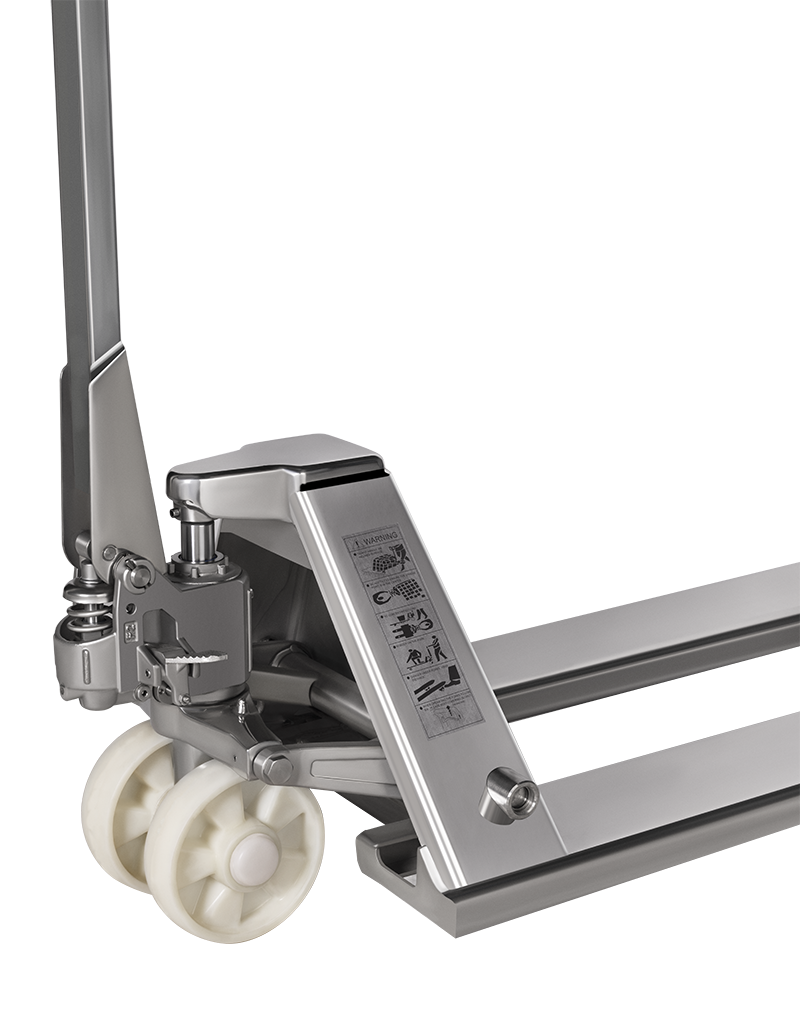

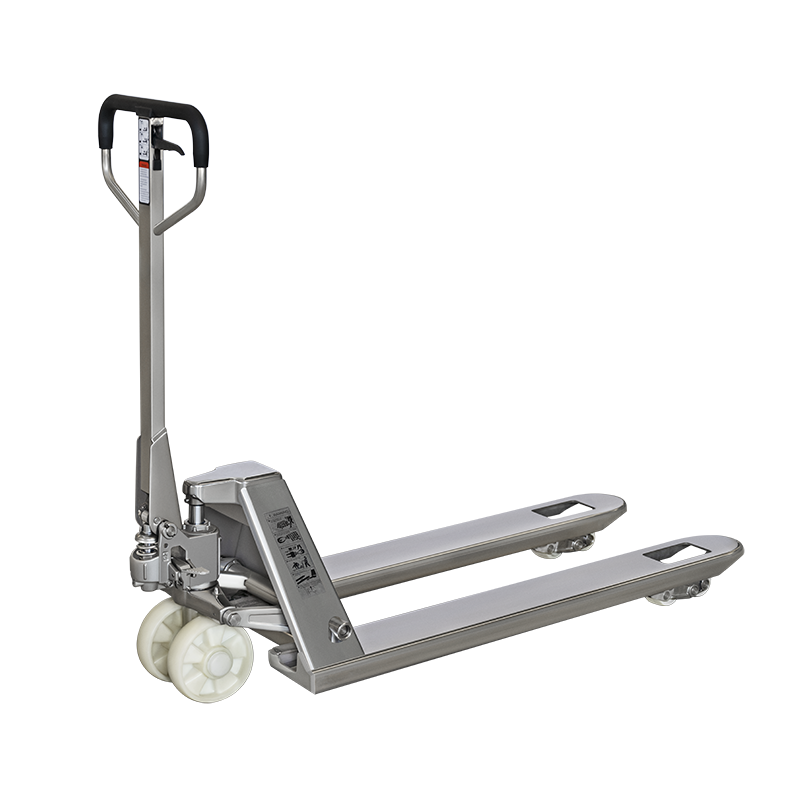

100% stainless or non-corrosive components.
Acid-resistant chassis.
Greasable bushings ensure a long service life.
Ideal for use in cold store, food processing, pharmaceutical, and laboratory environments.Stainless steel pallet trucks are widely used for carry pallet containing meat, sea products, diary products, wines, beverages, chemicals etc. and are ideal for working in low temperature conditions, such as taking goods in and out of cold storage.
All surfaces are glass blasted – giving a smooth surface and ensuring easy cleaning.
| Model | BF-SS | |||||||
|---|---|---|---|---|---|---|---|---|
| Load Capacity (Q) | kg | 2000 | 2500 | 3000 | ||||
| Width Overall Forks (K) | mm | 685 | 550 | 685 | 550 | 685 | 550 | |
| Fork Length(l) | mm | 1220 | 1150 | 1220 | 1150 | 1220 | 1150 | |
| Overall Length( l1) | mm | 1620 | 1550 | 1620 | 1550 | 1620 | 1550 | |
| Handle Height (h2) | mm | 1215 | 1215 | 1215 | 1215 | 1215 | 1215 | |
| Lowered Fork Height (h) | mm | 85/75 | 85/75 | 85/75 | 85/75 | 85/75 | 85/75 | |
| Overall Lifting Height (h1) | mm | 110 | 110 | 110 | 110 | 110 | 110 | |
| Ground Clearance(m) | mm | 30 | 30 | 30 | 30 | 30 | 30 | |
| Fork Width(e) | mm | 160 | 160 | 160 | 160 | 160 | 160 | |
| Fork Thickness (s) | mm | 50 | 50 | 50 | 50 | 50 | 50 | |
| Fork Wheel | mm | 80*70/ 74*70 | 80*70/ 74*70 | 80*70/ 74*70 | 80*70/ 74*70 | 80*70/ 74*70 | 80*70/ 74*70 | |
| Steering Wheel | mm | 180*50 | 180*50 | 180*50 | 180*50 | 180*50 | 180*50 | |
| Service Weight | Kg | 70-80 | 70-80 | 70-80 | 70-80 | 70-80 | 70-80 | |
| Turning Radius (WQ) | mm | 1450 | 1380 | 1450 | 1380 | 1450 | 1380 | |
