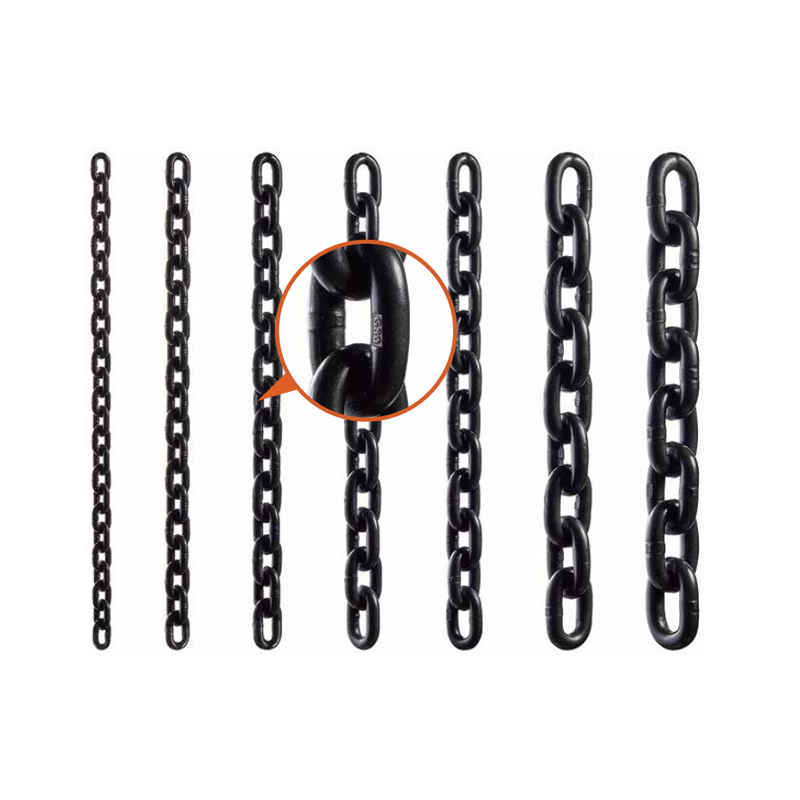

The G80 Lifting Chains are made of high-quality low-carbon alloy after heat treatment to ensure the excellent impact resistance, load capacity, toughness and elongation, greatly improving its safety and service life.
The special grade of alloy steel chain is ideal for overhead lifting due to their high strength and abrasion resistance, as well as their ability to stretch up to 20% before breaking when subjected to overloading.
| Size d*p (MM) |
| Weight (KG/M) | W.L.L (T) | Test Load (KN) | Breaking Load Min (KN) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 6x18 | 7.5 | 21 | 0.79 | 1.1 | 27 | 45.2 | ||||
| 8x24 | 10 | 28 | 1.38 | 2 | 48 | 80.4 | ||||
| 10x30 | 12.5 | 35 | 2.2 | 3.2 | 76 | 126 | ||||
| 12x36 | 15 | 42 | 3.1 | 4.6 | 109 | 180.9 | ||||
| 13x39 | 16.3 | 46 | 3.8 | 5 | 128 | 212 | ||||
| 16x48 | 20 | 56 | 5.63 | 8 | 192 | 322 | ||||
| 18x54 | 23 | 63 | 6.85 | 10 | 246 | 407 | ||||
| 20x60 | 25 | 70 | 8.6 | 12.5 | 300 | 503 | ||||
| 22x65 | 28 | 74.2 | 10.7 | 15.3 | 366 | 608 | ||||
| 26x78 | 35 | 91 | 14.87 | 21.3 | 510 | 850 | ||||
| 30x90 | 38 | 105 | 19.6 | 28.3 | 678 | 1130 | ||||
| 32x96 | 40 | 106 | 22.29 | 32.2 | 772 | 1286 | ||||
| 34x126 | 38 | 109 | 22.7 | 36.3 | 870 | 1450 | ||||
| 42x126 | 55.5 | 144.5 | 38.6 | 55.4 | 1332 | 2200 | ||||
