Standard epoxy powder coating which is resistant to chips and normal corrosion.
Exceptionally strong but light weight steel structure, Min service weight is only 63.2kgs.
With welded joints and reinforced fork tips for high durability in the toughest applications.
Positions of hand control - Raise, Lower, Neutral.
Excellent turning angle of 190 degrees.
Number of pump strokes 12 times.

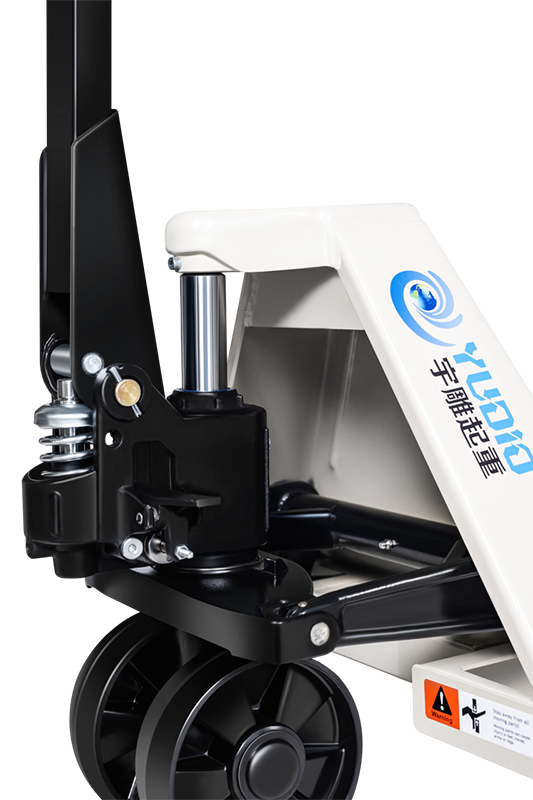

Reliable oil leak-proof hydraulic system.
Conforms to EN ISO3691-5, Based on Directive 2006/42/EC.
Entry / exit roller available for more freely travel.
Conform to EN ISO3691-5;Based on Directive 2006/42/EC
Option: 1) Nylon wheel, Polyurethane wheel, rubber wheel.
2) Fork length: 800mm, 900mm, 1000mm,1100mm.1500mm,1800mm,2000mm.

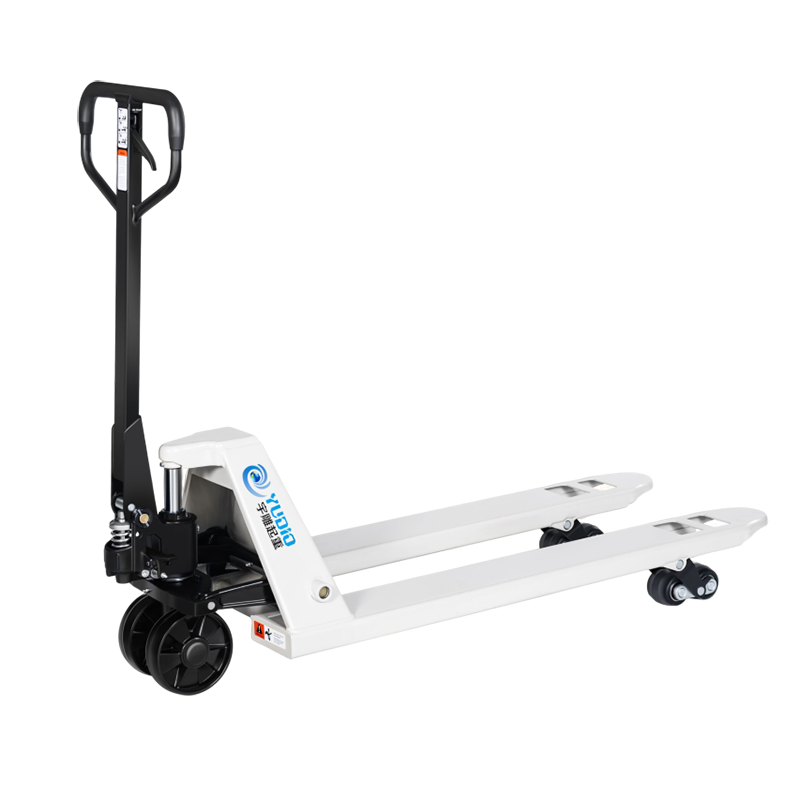

| Model | BF-S-II | |||||||
|---|---|---|---|---|---|---|---|---|
| Load Capacity (Q) | Kg | 2000 | 2500 | 3000 | ||||
| Width Overall Forks (b) | mm | 685 | 550 | 685 | 550 | 685 | 550 | |
| Fork Length (l) | mm | 1220 | 1150 | 1220 | 1150 | 1220 | 1150 | |
| Overall Length (l1) | mm | 1620 | 1550 | 1620 | 1550 | 1620 | 1550 | |
| Handle Height (h2) | mm | 1215 | 1215 | 1215 | 1215 | 1215 | 1215 | |
| Lowered Fork Height (h) | mm | 85 | 85 | 85 | 85 | 85 | 85 | |
| Overall Lifting Height (h1) | mm | 110 | 110 | 110 | 110 | 110 | 110 | |
| Min.Ground Clearance(m) | mm | 30 | 30 | 30 | 30 | 30 | 30 | |
| Fork Width (e) | mm | 160 | 160 | 160 | 160 | 160 | 160 | |
| Fork Thickness(s) | mm | 50 | 50 | 50 | 50 | 50 | 50 | |
| Fork wheel | mm | 80*70 | 80*70 | 80*70 | 80*70 | 80*70 | 80*70 | |
| Steering Wheel | mm | 180*50 | 180*50 | 180*50 | 180*50 | 180*50 | 180*50 | |
| Service weight | PU Wheel | kg | 77 | 80 | 77.5 | 80.5 | 80 | 83 |
| Nylon Wheel | 72 | 75 | 72.5 | 75.5 | 75 | 78 | ||
| Turning Radius (WQ) | mm | 1450 | 1380 | 1450 | 1450 | 1450 | 1380 | |
